Focus XD series
Data

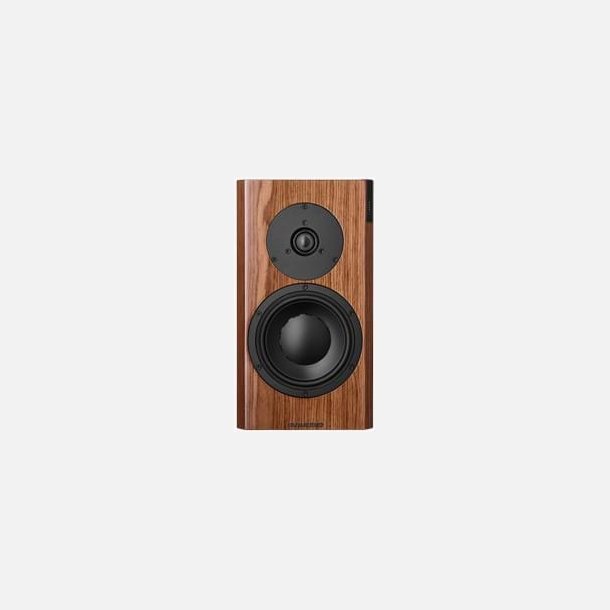

Focus 200 XD
Analog inputs 1xRCA per speaker 1xRCA per speaker 1xRCA per speaker
Digital inputs / outputs 1xRCA input/1xRCA output 1xRCA input/1xRCA output 1xRCA input/1xRCA output
Wireless Accepts up to 24-bit/96kHz (Connect box)
Accepts up to 24-bit/96kHz (Connect box)
Accepts up to 24-bit/96kHz (Connect box)
Frequency response (+/- 3dB) 18Hz–24kHz 29Hz–24kHz 39Hz–24kHz
Box principle Closed Bass reflex rear ported
Bass reflex rear ported Crossover 3-way
DSP-based 2½-way DSP-based 2-way
DSP-based Crossover frequencies 285Hz, 4600Hz (300Hz), 4000Hz 4200Hz
Woofer 2x18cm MSP 17cm MSP 17cm MSP
Midrange 14cm MSP 17cm MSP
Tweeter 28mm soft dome 28mm soft dome 28mm soft dome
Amplifier power
4x150W
3x150W
2x150W AC power input 100-240V 50/60Hz 100-240V 50/60Hz 100-240V 50/60Hz
Power consumption (standby) <0.5W <0.5W <0.5W
Power consumption (max) 200W 200W 200W
Weight
27kg/59lb
18.5kg/40lb
8.65kg/18lb
Dimensions (WxHxD)
213x1095x337mm
198x980x307mm
198x360x307mm
Dimensions with feet/grille (WxHxD)
271x1123x358mm
256x998x328mm
198x360x322mm
Focus XD A digital revolution
Finishes/grilles: Black Piano Lacquer/Black, Grey Oak High Gloss/Black, Rosewood Dark High Gloss/Black, Walnut High Gloss/Black and White Satin/Black
