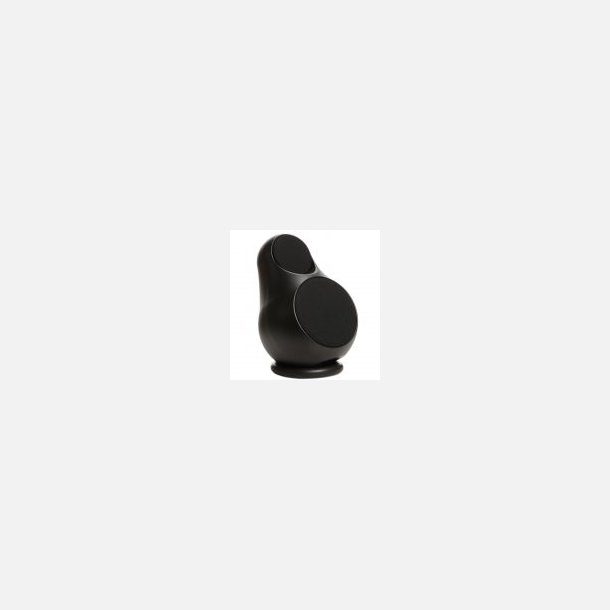

JERN®14 DS Specification
| Design | Two way. Phase linear wide dispersion design. Sealed cabinet for best transient response. Dimensions 30 cm tall, 19,5 cm deep and 21 cm wide. Net weight 12,54 kg. |
| Drive Units | Scan-Speak woofer 5 1/4 inch 149 mm cast frame. Very smooth frequency response +- 2dB op to 9 kHz. · Excellent Midrange Performance · Low Damping SBR Rubber Surround · Coated NRSC Fibre Glass Cone · Die cast Aluminium chassis vented below spider. Scan-Speak small 20 mm textile dome tweeter with a long excursion of +-0,7 mm, good for 6 dB / Octave phase linear filters. Sheep wool damping of the tweeter. |
| Frequency response | 90 – 20.000 Hz |
| Comments | These JERN®14 loudspeakers need to work with high quality subwoofers. They are a very easy load for amplifiers. |
| Crossover | The phase linear 6dB/octave custom-made crossover uses a Mundorf polypropylene capacitor and an air core coil. It delivers a fine 3D soundstage. |
| Amplifier requirements | 25 – 150W / 8 Ohm Sensitivity (2.83V/1m) 88 dB Impedance 8Ω |
